Metallurgy Stone Raymond Mill Machine With Vertical Structure Yuhong Brand

Henan Yuhong Heavy Machinery Co., Ltd.

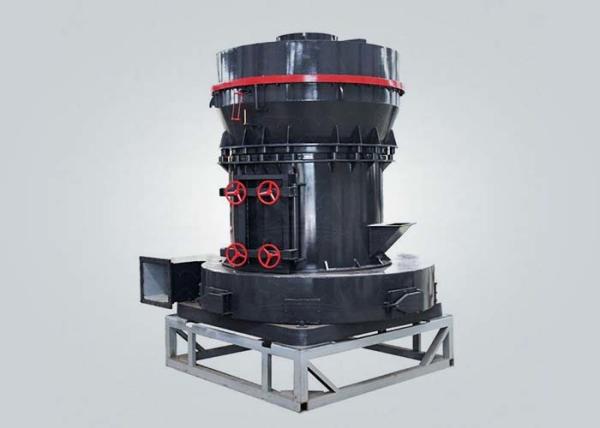

Metallurgy Stone Raymond Mill Machine With Vertical Structure Yuhong Brand

Brand Name : Yuhong

Model Number : 5R4119

Certification : CE, ISO, BV

Place of Origin : Henan, China

MOQ : 1set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 15-30sets per month

Delivery Time : 25-30 Days

Packaging Details : seaworthy and long distance transportation sustainable packaging

Type : Yuhong Raymond mill

Application : Cement, coal, metallurgy, etc..

Condition : New

Name : Raymond grinding mill

Color : As requirement

Usage : Material Grinding

Motor power : 75kw

Warranty : 1 year

Contact Now

Metallurgy Stone Raymond Mill Machine With Vertical Structure Yuhong Brand

Processed Materials:

Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc..

Applications:

Cement, coal , power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.


Product Introduction:

Metallurgy stone raymond Grinder Mill is Also choice for nonflammable and non-explosive minerals of which Moth’s hardness is less than 9.3, moisture content is less than 6%, for example: quartz, feldspar, calcite, talcum, barite, fluorite, Rare earth, marble, ceramic, aluminous bauxite, manganese ore, iron ore, copper ore, phosphorus rock, red ferric oxide, Zircon, slag, granulating slag, cement clinker, active carbon, dolomite, granite, garnet, yellow ferric oxide, fertilizer, multiplex fertilizer, fly ash, soft coal, coking coal, lignite, magnesite, chromium oxide green, gold ore, red clay, clay, kaolin, coal tar creosote, coal slack, porcelain clay, cyanite, fluorspar, bentonite clay, medical stone, rhyolite, greenstone pyrophyllite, shale, basalt, gypsum, graphite.

Technical Parameter:

Model Max Feeding Size Finished Products Size Shift Output Inner Diameter of Ring Diameter of Roller Height of Roller and Ring Main Motor Power Dimensions Weight
(L×W×H)
(mm) (mm) (t/h) (mm) (mm) (mm) (kw) (mm) (kg)
3R2115 15 0.125-0.044 1-18 6460 210 150 15 4500*2800*5800 3600
3R3016 15-25 0.125-0.044 3-30 910 300 160 30 7500*4500*5000 7000
4R2716 15-25 0.125-0.044 3-36 830 270 160 22 5970*4000*5000 3900
4R3016 15-25 0.125-0.044 3-36 910 300 160 30 7500*4500*6200 7500
5R4119 30 0.125-0.044 6-75 1280 410 190 75 7850*8000*9700 25700
6R4525 30 0.125-0.044 10-120 1770 450 250 132 8850*10500*11000 47000

Working Principle:

Firstly, raw material is crushed by jaw crusher to the size required, then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.

After this, the ground stuff are carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set’s airflow system is closely sealed up and circulated under condition of negative and positive pressure.

Features:

1. The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant.

5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.

6. High pressure spring design

7. Smoothly vibration reduce design

8. Convenient vane adjust design

9. Strong material applicability, suits for all kinds of material with Moth’s hardness less than 9.3.

10. Superimposed multistage seal, excellent sealing performance.

Quality control:

We always pay great attention to the quality of grinding mill. Standard quality control system and team are responsible to ensure the

the product quality in every process with different different instruments. We still insist on communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always in the front.

1. China famous brand motor, forbid small factory products.

2. Manufacture strictly by standard drawing.

3. Enlarged grinding roller and grinding ring, machine is more heavy than other factory.

4. Adjustable output size.
